Whether it be at home or in the office, some spaces crave natural light yet still demand a level of privacy. Our ScalaTexture™ range is the cost-effective option when lighting up a room – without sacrificing the privacy you desire.
Select from a wide range of styles and effects that dramatically change the aesthetic of a setting. From modern facades to old-world interiors, design the look that is perfect for your space with ScalaTexture™.
Create Private & Illuminated Spaces
ScalaTexture™ diffuses the light that enters a space, transferring the very best qualities of natural light whilst blocking out onlookers.

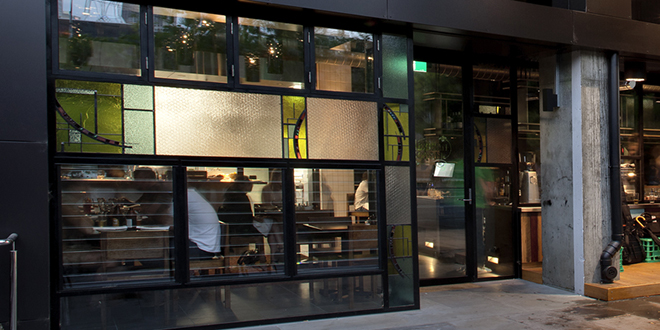

Striking Designs without the Pricetag
ScalaTexture™ offers a low-cost decorative touch to a room with a range of styles and visual effects to suit any setting.

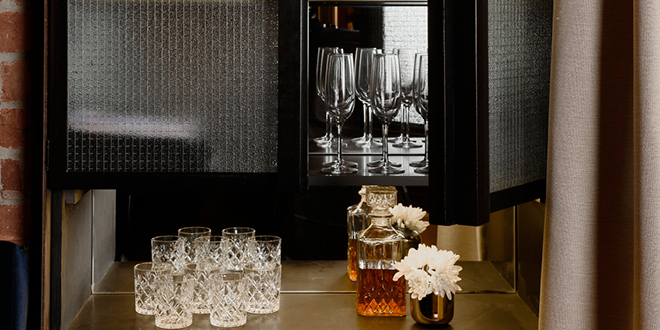

Pattern Consistency & Durability
Our options across the ScalaTexture™ range come with a consistent finish and high level of durability.
Explore
The different styles and
effects of ScalaTexture™
Clear
Cathlite
Squarelite

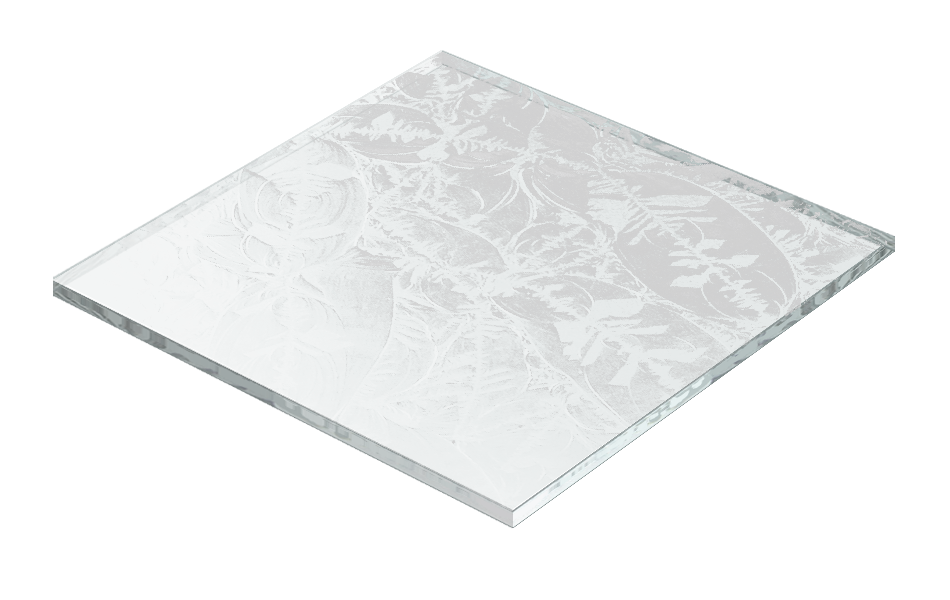

Glue Chip
Polished Wire
Satinlite
Spotswood
Tested & Certified
ScalaTexture™ is a Grade A Safety Glass when toughened or laminated to the relevant standards (AS/NZS2208).
Privacy
Design patterns available within the ScalaTexture™ range offer rooms access to natural light while maintaining their privacy.
Toughened
ScalaTexture™ products are five times stronger than ordinary glass when toughened to the relevant standard (AS/NZS2208).
Technical Specifications
- Windows for privacy and decoration
- Shower and bath enclosures
- Interior partitions
- Door inserts
- Wall panels and wall features
- Lead lighting
- Balustrades
- Louvres
- Furniture
- Maximum Size:
ScalaTexture™ Clear
4mm - 2440 x 1840mm
5mm - 2440 x 1840mm
6mm - 2440 x 1840mm
ScalaTexture™ Grey
5mm - 2440 x 1830mm
ScalaTexture™ Squarelite
6mm - 2440 x 1840mm
ScalaTexture™ Polished Wired N
6mm - 3300 x 1980mm
| Product | Type | Clear | Grey | Glazing | |||||
|---|---|---|---|---|---|---|---|---|---|
| Textured | Wired | 4mm | 5mm | 6mm | 5mm | Non Direct | Direct | Obscure | |
| Glue Chip | ♦ | ♦ | 🌓 | ||||||
| Satinlite | ♦ | ♦ | ♦ | ♦ | ♦ | 🌑 | |||
| Spotswood | ♦ | ♦ | ♦ | ♦ | ♦ | 🌑 | |||
| Cathlite | ♦ | ♦ | ♦ | ♦ | 🌕 | ||||
| Dark Grey | ♦ | ♦ | 🌑 | ||||||
| Squarelite* | ♦ | ♦ | 🌑 | ||||||
| Polished Wire N* | ♦ | 🌕 | |||||||
*Squarelite and Polished Wire N cannot be toughened
Toughening and laminating - the above chart illustrates the suitability of the various patterns to be laminated (using the PVB method) or toughened.
Fire resistance - while Viridian wired glass does not on its own have a fire rating, it can be part of a glass/door/window assembly which as a complete unit may achieve a fire rating.
Thermal resistance - wired and toned texture glass absorbs solar radiation and may be subject to thermal stress. It is preferable not to expose wired glass to severe direct sunlight. Similarly, jets of very hot water sprayed directly onto wired glass may result in thermal cracking and should be avoided. Further technical advice should be obtained from Viridian before specifying.
